0.6/1kV CU(AL)/XLPE/PVC IEC 60502-1, AS/NZS 5000.1

Single Core XLPE Cable

도체 절연두께 피복두께 완성외경 중량
공칭단면적 소선수/지름 지름
㎏/㎞
2.5 7/0.67 2.01 0.7 1.4 6.5 70
4 7/0.85 2.55 0.7 1.4 7.0 80
6 7/1.04 3.12 0.7 1.4 8.0 110
10 7/1.35 4.05 0.7 1.4 8.5 150
16 Compact
round
stranded
4.7 0.7 1.4 9.5 215
25 5.9 0.9 1.4 11.5 315
35 6.9 0.9 1.4 12.0 415
50 8.1 1.0 1.4 13.0 555
70 9.8 1.1 1.4 15.0 780
95 11.4 1.1 1.5 17.0 1,025
120 12.9 1.2 1.5 18.5 1,270
150 14.4 1.4 1.6 21.5 1,575
185 15.9 1.6 1.6 23 1,930
240 18.3 1.7 1.7 26 2,470
300 20.5 1.8 1.8 28 3,100
400 23.2 2.0 1.9 32 4,090
500 26.4 2.2 2.0 36 5,100
630 30.2 2.4 2.2 40 6,410

* Approx. Weight data applied copper conductor

Multi Core XLPE Cable

도체 절연두께 2심 3심
공칭단면적 소선수/지름 지름 피복두께 완성외경 중량 피복두께 완성외경 중량
㎏/㎞ ㎏/㎞
2.5 7/0.67 2.01 0.7 1.8 11.5 155 1.8 12.0 190
4 7/0.85 2.55 0.7 1.8 12.5 195 1.8 13.5 240
6 7/1.04 3.12 0.7 1.8 13.5 255 1.8 15.0 320
10 7/1.35 4.05 0.7 1.8 15.5 360 1.8 16.5 465
16   4.7 0.7 1.8 17 490 1.8 18.5 650
25   5.9 0.9 1.8 20 720 1.8 22 965
35   6.9 0.9 1.8 22 960 1.8 24 1,290
50   8.1 1.0 1.8 25 1,290 1.8 27 1,770
70   9.8 1.1 1.8 29 1,750 1.9 31 2,440
95   11.4 1.1 1.9 32 2,310 2.0 35 3,240
120   12.9 1.2 2.0 36 2,880 2.1 39 4,050
150   14.4 1.4 2.2 40 3,610 2.3 43 5,050
185   15.9 1.6 2.3 44 4,410 2.4 48 6,200
240   18.3 1.7 2.5 50 5,690 2.6 53 7,990
300   20.5 1.8 2.6 55 7,070 2.7 59 9,980
400   23.2 2.0 - - - 3.0 66 13,220

* Approx. Weight data applied copper conductor

0.6/1kV CU(AL)/XLPE/PVC/CTS/PVC IEC 60502-1, AS/NZS 5000.1

Cable Design 1C
1 Conductor Annealed Copper or Aluminum
2 Insulation XLPE
3 Filler Filler
4 Tape Binder Tape 3C
5 Bedding PVC
6 Screen Copper Tape + Binder Tape
7 Sheath PVC
Nominal Closs-Sectional
Area of Conductor
Thickness of Insulation Thickness of Bedding Thickness of Screen Thickness of Sheath Approx. Overall Diameter
1C 3C 1C 3C 1C 3C 1C 3C
2.5 0.7 - 1.0 - 0.09 - 1.8 - 14
4 0.7 - 1.0 - 0.09 - 1.8 - 15
6 0.7 - 1.0 - 0.09 - 1.8 - 16.5
10 0.7 1.0 1.0 0.09 0.09 1.4 1.8 11 18.5
16 0.7 1.0 1.0 0.09 0.09 1.4 1.8 11.5 19.5
25 0.9 1.0 1.0 0.09 0.09 1.4 1.8 14 23.5
35 0.9 1.0 1.4 0.09 0.09 1.4 1.8 14.5 25.5
50 1.0 1.0 1.0 0.09 0.09 1.4 1.8 16 28.5
70 1.1 1.0 1.2 0.09 0.09 1.4 2.0 17.5 33.5
95 1.1 1.0 1.2 0.09 0.09 1.5 2.1 19.5 40
120 1.2 1.0 1.2 0.09 0.09 1.6 2.2 21.5 41.5
150 1.4 1.0 1.4 0.09 0.09 1.6 2.4 23.5 46
185 1.6 1.0 1.4 0.09 0.09 1.7 2.5 25.5 50.5
240 1.7 1.0 1.6 0.09 0.09 1.8 2.7 28 56.5
300 1.8 1.0 1.6 0.09 0.09 1.9 2.9 30.5 62
400 2.0 1.2 1.8 0.09 0.09 2.0 3.2 35 71
500 2.2 1.2 1.8 0.09 0.09 2.1 3.4 38 77.5
630 2.4 1.2 1.8 0.09 0.09 2.3 3.8 43 88

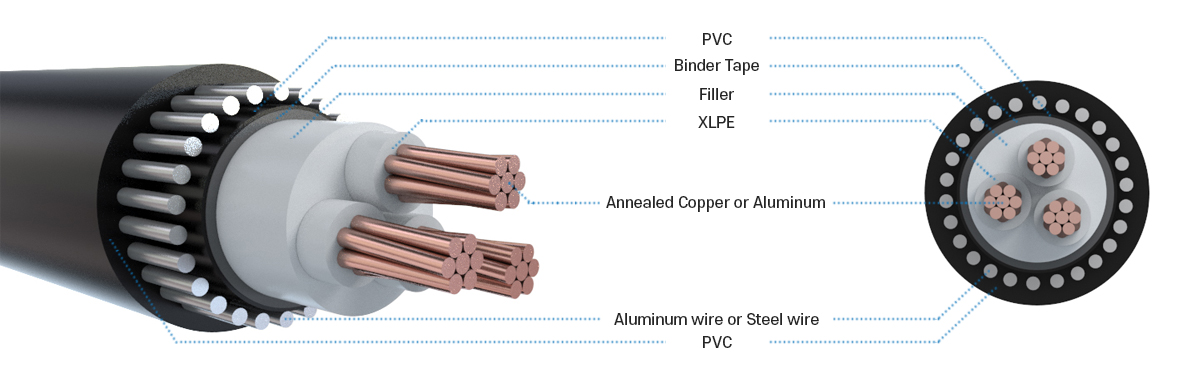

0.6/1kV CU(AL)/XLPE/PVC/SWA(AWA)/PVC IEC 60502-1, AS/NZS 5000.1

Cable Design 1C
1 Conductor Annealed Copper or Aluminum
2 Insulation XLPE
3 Filler Filler
4 Tape Binder Tape 3C
5 Bedding PVC
6 Screen Aluminum wire or Steel wire
7 Sheath PVC

* single core : Aluminum wire armour, three core : Steel wire armour

Nominal Closs-Sectional
Area of Conductor
Thickness of Insulation Thickness of Bedding Thickness of Screen Thickness of Sheath Approx. Overall Diameter
1C 3C 1C 3C 1C 3C 1C 3C
2.5 0.7 - 1.0 - 0.8 - 1.8 - 15
4 0.7 - 1.0 - 1.25 - 1.8 - 16
6 0.7 - 1.0 - 1.25 - 1.8 - 18.5
10 0.7 1.0 1.0 0.8 1.25 1.8 1.8 13 20.5
16 0.7 1.0 1.0 0.8 1.6 1.8 1.8 13.5 22.5
25 0.9 1.0 1.0 0.8 1.6 1.8 1.8 15 26
35 0.9 1.0 1.0 1.25 1.6 1.8 1.8 17 28.5
50 1.0 1.0 1.0 1.25 1.6 1.8 1.9 18 31.5
70 1.1 1.0 1.2 1.25 2.0 1.8 2.1 20 37
95 1.1 1.0 1.2 1.6 2.0 1.8 2.2 22.5 40.5
120 1.2 1.0 1.2 1.6 2.5 1.8 2.4 24 46
150 1.4 1.0 1.4 1.6 2.5 1.8 2.5 26 50.5
185 1.6 1.0 1.4 1.6 2.5 1.8 2.7 27.5 55
240 1.7 1.0 1.6 1.6 2.5 1.9 2.9 30.5 61.5
300 1.8 1.0 1.6 2.0 2.5 2.0 3.1 33.4 66.5
400 2.0 1.2 1.8 2.0 3.15 2.1 3.4 38.5 77
500 2.2 1.2 1.8 2.0 3.15 2.2 3.6 41.5 83.5
630 2.4 1.2 1.8 2.5 3.15 2.4 3.9 47 92.5

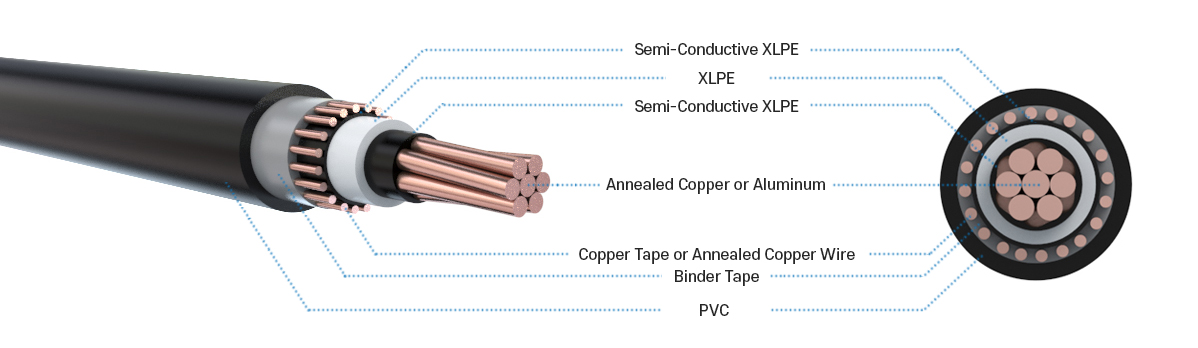

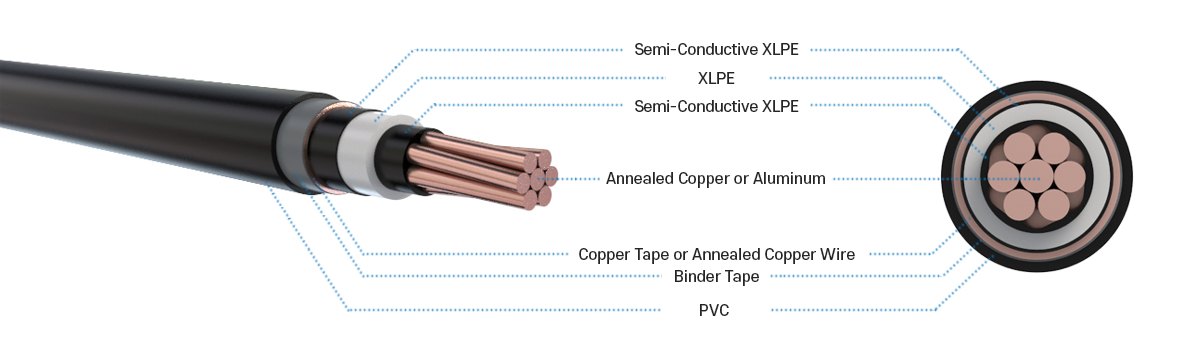

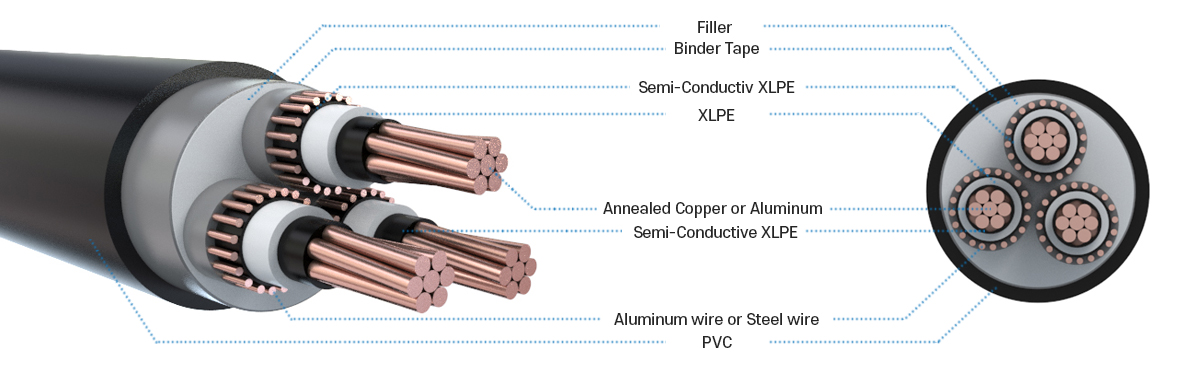

3.6/6(7.2)kV CU(AL)/XLPE/CTS(SCR)/PVC IEC 60502-2
3.8/6.6(7.2)kV CU(AL)/XLPE/CTS(SCR)/PVC AS/NZS 1429.1

Cable Design
1 Conductor Annealed Copper or Aluminum
2 Conductor Screen Semi-Conductive XLPE
3 Insulation XLPE
4 Insulation Screen Semi-Conductive XLPE
5 Filler Filler
6 Tape Binder Tape
7 Metallic Screen Copper Tape or Annealed Copper Wire
8 Shealth PVC

* SCR(Annealed Copper Wire Screen) : Up to 10kA fault level

Nominal Closs-Sectional
Area of Conductor
Thickness of Insulation Copper Tape Screen Annealed Copper Wire Screen
Approx. Thickness of Metallic Screen Thickness Sheath Approx. Overall Diameter Nominal Cross-Sectional Area of Metallic Screen Thickness of Sheath Approx. Overall Diameter
1C 3C 1C 3C 1C 3C 1C 3C 1C 3C 1C 3C
16 2.5 0.1 0.1 1.4 2.0 16 33 16 17 1.8 2.0 18 35.5
25 2.5 0.1 0.1 1.5 2.1 17.5 36 24 26 1.8 2.1 19 38
35 2.5 0.1 0.1 1.5 2.1 18.5 38.5 34 34 1.8 2.2 21 40
50 2.5 0.1 0.1 1.5 2.2 19.5 41 49 49 1.8 2.3 22 42.5
70 2.5 0.1 0.1 1.6 2.4 21.5 47 68 68 1.8 2.4 24.5 46.5
95 2.5 0.1 0.1 1.6 2.5 23 50.5 69 69 1.8 2.5 26.5 50.5
120 2.5 0.1 0.1 1.7 2.7 25 54.5 69 69 1.8 2.7 27.5 54.5
150 2.5 0.1 0.1 1.7 2.8 26.5 58 69 69 1.8 2.8 28.5 57.5
185 2.5 0.1 0.1 1.8 2.9 28 61.5 69 69 1.9 2.9 30.5 61.5
240 2.5 0.1 0.1 1.9 3.1 30.5 66.5 69 69 2.1 3.1 33.5 67
300 2.5 0.1 0.1 2.0 3.2 33 71 69 69 2.1 3.3 36.5 74
400 2.5 0.1 0.1 2.1 3.5 36.5 79 69 69 2.2 3.5 40 81.5

When Aluminum conductor is applied, Annealed Copper Wire Screen data can be changed.

6/10(12)kV CU(AL)/XLPE/CTS(SCR)/PVC IEC 60502-2
6.35/11(12)kV CU(AL)/XLPE/CTS(SCR)/PVC AS/NZS 1429.1

Cable Design
1 Conductor Annealed Copper or Aluminum
2 Conductor Screen Semi-Conductive XLPE
3 Insulation XLPE
4 Insulation Screen Semi-Conductive XLPE
5 Filler Filler
6 Tape Binder Tape
7 Metallic Screen Copper Tape or Annealed Copper Wire
8 Shealth PVC

* SCR(Annealed Copper Wire Screen) : Up to 10kA fault level

Nominal Closs-Sectional
Area of Conductor
Thickness of Insulation Copper Tape Screen Annealed Copper Wire Screen
Approx. Thickness of Metallic Screen Thickness Sheath Approx. Overall Diameter Nominal Cross-Sectional Area of Metallic Screen Thickness of Sheath Approx. Overall Diameter
1C 3C 1C 3C 1C 3C 1C 3C 1C 3C 1C 3C
16 3.4 0.1 0.1 1.5 2.1 18 36 16 17 1.5 2.2 19.5 39.5
25 3.4 0.1 0.1 1.5 2.2 19.5 39 24 26 1.6 2.3 20.5 42
35 3.4 0.1 0.1 1.5 2.3 20.5 41.5 34 34 1.6 2.4 22.5 44.5
50 3.4 0.1 0.1 1.6 2.4 22 44 49 49 1.7 2.5 24 47
70 3.4 0.1 0.1 1.7 2.5 23.5 48 68 68 1.8 2.6 26.5 51
95 3.4 0.1 0.1 1.7 2.6 25 51.5 69 69 1.8 2.7 27.5 55
120 3.4 0.1 0.1 1.7 2.7 27 55 69 69 1.9 2.8 29.5 58.5
150 3.4 0.1 0.1 1.8 2.8 28.5 59 69 69 1.9 3.0 30.5 62
185 3.4 0.1 0.1 1.9 2.9 30 63 69 69 2.0 3.1 32.5 66
240 3.4 0.1 0.1 2.0 3.0 32.5 67.5 69 69 2.1 3.2 35 71
300 3.4 0.1 0.1 2.0 3.1 35 72 69 69 2.2 3.4 38 77
400 3.4 0.1 0.1 2.2 3.5 38.5 83 69 69 2.3 3.7 41 84

When Aluminum conductor is applied, Annealed Copper Wire Screen data can be changed.

12/20(24)kV CU(AL)/XLPE/CTS(SCR)/PVC IEC 60502-2
12.7/22(24)kV CU(AL)/XLPE/CTS(SCR)/PVC AS/NZS 1429.1

Cable Design
1 Conductor Annealed Copper or Aluminum
2 Conductor Screen Semi-Conductive XLPE
3 Insulation XLPE
4 Insulation Screen Semi-Conductive XLPE
5 Filler Filler
6 Tape Binder Tape
7 Metallic Screen Copper Tape or Annealed Copper Wire
8 Shealth PVC

* SCR(Annealed Copper Wire Screen) : Up to 10kA fault level

Nominal Closs-Sectional
Area of Conductor
Thickness of Insulation Copper Tape Screen Annealed Copper Wire Screen
Approx. Thickness of Metallic Screen Thickness Sheath Approx. Overall Diameter Nominal Cross-Sectional Area of Metallic Screen Thickness of Sheath Approx. Overall Diameter
1C 3C 1C 3C 1C 3C 1C 3C 1C 3C 1C 3C
16 5.5 0.1 0.1 1.6 2.4 21 46 16 17 1.7 2.5 24 50
25 5.5 0.1 0.1 1.7 2.5 24 48.5 24 26 1.7 2.6 25.5 53
35 5.5 0.1 0.1 1.7 2.6 25 51 34 34 1.8 2.7 27 54.5
50 5.5 0.1 0.1 1.7 2.7 26 54 49 49 1.9 2.8 28.5 57
70 5.5 0.1 0.1 1.8 2.8 28 57.5 69 69 1.9 2.9 30 60.5
95 5.5 0.1 0.1 1.9 2.9 30 61.5 69 69 2.0 3.0 32.5 65
120 5.5 0.1 0.1 1.9 3.0 31.5 64.5 69 69 2.0 3.2 34 68.5
150 5.5 0.1 0.1 2.0 3.1 33 68 69 69 2.1 3.3 35.5 72
185 5.5 0.1 0.1 2.0 3.2 34.5 71.5 69 69 2.1 3.4 37 76
240 5.5 0.1 0.1 2.1 3.4 37 77 69 69 2.2 3.6 40 81.5
300 5.5 0.1 0.1 2.2 3.6 39.5 82.5 69 69 2.3 3.8 42.5 87.5
400 5.5 0.1 0.1 2.3 3.8 42.5 88.5 69 69 2.4 4.0 45.5 94

When Aluminum conductor is applied, Annealed Copper Wire Screen data can be changed.

18/30(36)kV CU(AL)/XLPE/CTS(SCR)/PVC IEC 60502-2
19/33(36)kV CU(AL)/XLPE/CTS(SCR)/PVC AS/NZS 1429.1

Cable Design
1 Conductor Annealed Copper or Aluminum
2 Conductor Screen Semi-Conductive XLPE
3 Insulation XLPE
4 Insulation Screen Semi-Conductive XLPE
5 Filler Filler
6 Tape Binder Tape
7 Metallic Screen Copper Tape or Annealed Copper Wire
8 Shealth PVC

* SCR(Annealed Copper Wire Screen) : Up to 10kA fault level

Nominal Closs-Sectional
Area of Conductor
Thickness of Insulation Copper Tape Screen Annealed Copper Wire Screen
Approx. Thickness of Metallic Screen Thickness Sheath Approx. Overall Diameter Nominal Cross-Sectional Area of Metallic Screen Thickness of Sheath Approx. Overall Diameter
1C 3C 1C 3C 1C 3C 1C 3C 1C 3C 1C 3C
16 8.0 0.1 0.1 1.8 2.8 28 57.5 16 17 1.9 2.9 29.5 61.5
25 8.0 0.1 0.1 1.8 2.9 29 60 24 26 1.9 3.0 31 64.5
35 8.0 0.1 0.1 1.9 3.0 30.5 62.5 34 34 2.0 3.1 33 66.5
50 8.0 0.1 0.1 1.9 3.0 31.5 65 49 49 2.0 3.2 34 69
70 8.0 0.1 0.1 2.0 3.2 33.5 69 69 69 2.1 3.3 36 73
95 8.0 0.1 0.1 2.0 3.3 35 73 69 69 2.2 3.4 38 77
120 8.0 0.1 0.1 2.1 3.4 37 76.5 69 69 2.2 3.6 39.5 81
150 8.0 0.1 0.1 2.1 3.5 38.5 80 69 69 2.3 3.7 41.5 84.5
185 8.0 0.1 0.1 2.2 3.6 40 83 69 69 2.3 3.8 43 88.5
240 8.0 0.1 0.1 2.3 3.8 42.5 89 69 69 2.4 4.0 45.5 94
300 8.0 0.1 0.1 2.3 4.0 45 94 69 69 2.5 4.2 48 99.5
400 8.0 0.1 0.1 2.4 4.2 47.5 100 69 69 2.6 4.4 51.5 106

When Aluminum conductor is applied, Annealed Copper Wire Screen data can be changed.
