전기용 경 알루미늄연선 (HSAL)

용도

  • 가공 배전선, 가공 급전선 및 모선에 사용

적용규격

  • KS C 3112

구조

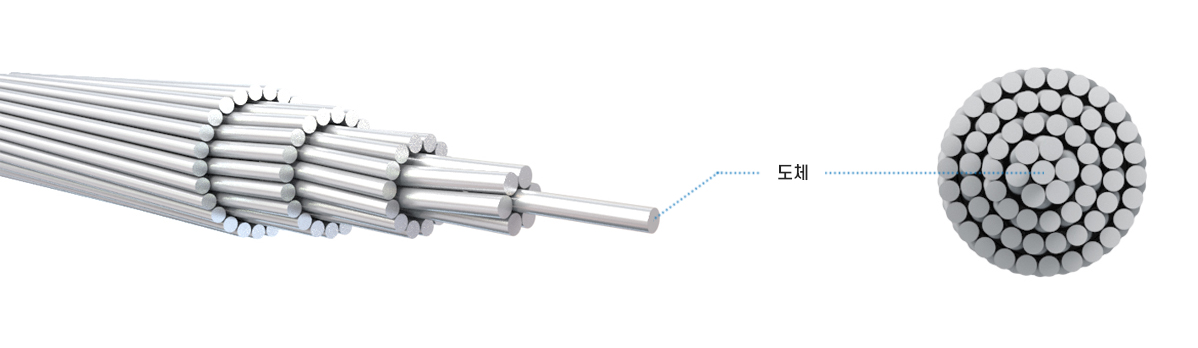

  • 도체 : 경알루미늄 연선

공칭단면적 소선수/소선지름 계산단면적 완성외경 중량 최소
인장하중
최대
도체저항
Hard-drawn
Copper
Equiv. Area
길이
No./㎜ ㎏/㎞ Ω/㎞ m
1,260 92/4.2 1,260 46.2 3,499 18,350 0.0230 792 600
1,000 127/3.2 1,021 41.6 2,840 15,200 0.0285 642 800
980 91/3.7 978.3 40.7 2,716 14,500 0.0297 615 600
880 91/3.5 875.5 38.5 2,426 13,020 0.0331 551 700
850 61/4.2 844.9 37.8 2,334 12,300 0.0342 531 1,300
770 61/4.0 766.8 36.0 2,118 11,140 0.0377 482 1,000
725 91/4.2 731.8 35.2 2,027 10,890 0.0396 460 800
660 61/3.7 655.8 33.3 1,812 9,720 0.0441 412 1,300
590 61/3.5 586.9 31.5 1,621 8,730 0.0493 369 1,350
510 37/4.2 512.5 29.4 1,413 7,460 0.0563 322 1,300
500 61/3.2 490.6 28.8 1,355 7,300 0.0589 309 800
460 37/4.0 465.1 28.0 1,282 6,760 0.0612 292 1,000
400 37/3.7 397.8 25.9 1,097 5,890 0.0726 250 1,300
325 61/2.6 323.8 23.4 894.2 5,020 0.0892 204 1,200
300 37/3.2 297.6 22.4 820.1 4,430 0.0969 187 1,500
250 37/2.9 244.4 20.3 673.6 3,700 0.118 154 2,000
240 19/4.0 238.8 20.0 654.5 3,490 0.120 150 1,300
200 37/2.6 196.4 18.2 541.3 3,030 0.147 124 2,400
200 19/3.7 204.3 18.5 559.8 3,030 0.140 128 1,300
150 19/3.2 152.8 16.0 418.7 2,270 0.188 96 1,500
125 19/2.9 125.5 14.5 343.9 1,900 0.229 79 2,000
100 19/2.6 100.9 13.0 276.4 1,560 0.284 63 2,400
95 7/4.2 96.65 12.6 264.9 1,410 0.295 61 1,000
75 7/3.7 75.25 11.1 205.6 1,120 0.380 47 1,900
55 7/3.2 56.29 9.6 153.8 838 0.507 35 1,000
45 7/2.9 46.24 8.7 126.3 699 0.619 29 1,000
38 7/2.6 37.16 7.8 101.5 576 0.769 23 1,800
30 7/2.3 29.06 6.9 79.40 469 0.984 18 1,800
22 7/2.0 21.99 6.0 60.09 369 1.30 14 2,000
