0.6/1kV flame retardant PVC insulated PVC sheathed control cable (CVV)

Usage

  • This cable is designed for use in remote control system under 0.6/1kV in power plant and substataion

Applied specification

  • KS C IEC 60502-1

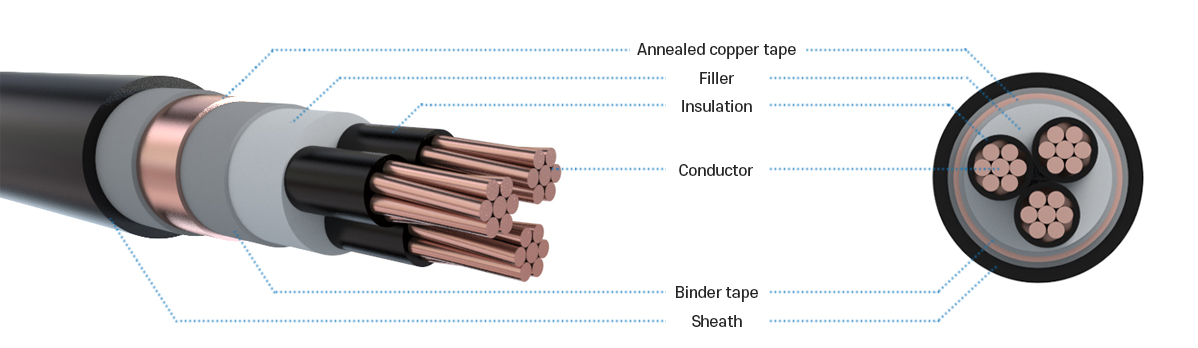

Structure

  • Conductor : Annealed copper wire
  • Insulation : PVC (Flame retardance)
  • Core identification : Coloring method-below 7 cores (2 cores black, white / 3 cores black, white, red / 4 cores black, white, red, green / 5 cores black, white, red, green, yellow / 6 cores black, white, red, green, yellow, brown / 7 cores black, white, red, green, yellow, brown, blue)
  • Shield : Copper tape (CVVS)
  • Sheath : PVC (Flame retardance)

CVV, FR-CVV, TFR-CVV

No. of
Cores		 Conductor Insulation
Thickness		 Sheath
Thickness		 Approx.
Overall
Diameter		 Max.
Conductor
Resistance
at 20℃		 Test Voltage Approx.
Weight		 Standard
Length
Nominal
Sectional
Area		 Number &
Diameter of
Wire		 Approx.
Outer
Diameter
㎟ No./㎜ ㎜ ㎜ ㎜ ㎜ Ω/㎞ V/5min ㎏/㎞ m
2 1.5 7/0.53 1.59 0.8 1.8 11.0 12.1 3,500 130 300
2.5 7/0.67 2.01 0.8 1.8 12.0 7.41 3,500 160 300
4 7/0.85 2.55 1.0 1.8 14.0 4.61 3,500 230 300
6 7/1.04 3.12 1.0 1.8 15.0 3.08 3,500 280 300
10 7/1.35 4.05 1.0 1.8 17.0 1.83 3,500 390 300
3 1.5 7/0.53 1.59 0.8 1.8 11.5 12.1 3,500 160 300
2.5 7/0.67 2.01 0.8 1.8 12.5 7.41 3,500 200 300
4 7/0.85 2.55 1.0 1.8 14.5 4.61 3,500 280 300
6 7/1.04 3.12 1.0 1.8 16.0 3.08 3,500 360 300
10 7/1.35 4.05 1.0 1.8 18.0 1.83 3,500 510 300
4 1.5 7/0.53 1.59 0.8 1.8 12.5 12.1 3,500 190 300
2.5 7/0.67 2.01 0.8 1.8 13.5 7.41 3,500 240 300
4 7/0.85 2.55 1.0 1.8 16.0 4.61 3,500 350 300
6 7/1.04 3.12 1.0 1.8 17.0 3.08 3,500 450 300
10 7/1.35 4.05 1.0 1.8 19.5 1.83 3,500 650 300
5 1.5 7/0.53 1.59 0.8 1.8 13.5 12.1 3,500 220 300
2.5 7/0.67 2.01 0.8 1.8 14.5 7.41 3,500 290 300
4 7/0.85 2.55 1.0 1.8 17.0 4.61 3,500 420 300
6 7/1.04 3.12 1.0 1.8 18.5 3.08 3,500 540 300
10 7/1.35 4.05 1.0 1.8 21.0 1.83 3,500 760 300
6 1.5 7/0.53 1.59 0.8 1.8 14.5 12.1 3,500 260 300
2.5 7/0.67 2.01 0.8 1.8 15.5 7.41 3,500 330 300
4 7/0.85 2.55 1.0 1.8 18.5 4.61 3,500 490 300
6 7/1.04 3.12 1.0 1.8 21.0 3.08 3,500 640 300
10 7/1.35 4.05 1.0 1.8 23.0 1.83 3,500 930 300
7 1.5 7/0.53 1.59 0.8 1.8 14.5 12.1 3,500 280 300
2.5 7/0.67 2.01 0.8 1.8 15.5 7.41 3,500 360 300
4 7/0.85 2.55 1.0 1.8 18.5 4.61 3,500 540 300
6 7/1.04 3.12 1.0 1.8 21.0 3.08 3,500 700 300
10 7/1.35 4.05 1.0 1.8 23.0 1.83 3,500 1,030 300
8 1.5 7/0.53 1.59 0.8 1.8 15.5 12.1 3,500 310 300
2.5 7/0.67 2.01 0.8 1.8 16.5 7.41 3,500 410 300
4 7/0.85 2.55 1.0 1.8 20.0 4.61 3,500 610 300
6 7/1.04 3.12 1.0 1.8 22.0 3.08 3,500 800 300
10 7/1.35 4.05 1.0 1.8 25.0 1.83 3,500 1,180 300
10 1.5 7/0.53 1.59 0.8 1.8 18.0 12.1 3,500 390 300
2.5 7/0.67 2.01 0.8 1.8 19.5 7.41 3,500 520 300
4 7/0.85 2.55 1.0 1.8 23.0 4.61 3,500 770 300
6 7/1.04 3.12 1.0 1.8 26.0 3.08 3,500 1,020 300
10 7/1.35 4.05 1.0 1.8 29.0 1.83 3,500 1,520 300
12 1.5 7/0.53 1.59 0.8 1.8 18.5 12.1 3,500 440 300
2.5 7/0.67 2.01 0.8 1.8 20.0 7.41 3,500 590 300
4 7/0.85 2.55 1.0 1.8 24.0 4.61 3,500 890 300
6 7/1.04 3.12 1.0 1.8 27.0 3.08 3,500 1,170 300
10 7/1.35 4.05 1.0 1.8 30.0 1.83 3,500 1,760 300
15 1.5 7/0.53 1.59 0.8 1.8 19.5 12.1 3,500 530 300
2.5 7/0.67 2.01 0.8 1.8 22.0 7.41 3,500 710 300
4 7/0.85 2.55 1.0 1.8 26.0 4.61 3,500 1,070 300
6 7/1.04 3.12 1.0 1.8 29.0 3.08 3,500 1,420 300
20 1.5 7/0.53 1.59 0.8 1.8 22.0 12.1 3,500 680 300
2.5 7/0.67 2.01 0.8 1.8 24.0 7.41 3,500 910 300
4 7/0.85 2.55 1.0 1.8 29.0 4.61 3,500 1,410 300
6 7/1.04 3.12 1.0 1.8 32.0 3.08 3,500 1,900 300
30 1.5 7/0.53 1.59 0.8 1.8 26.0 12.1 3,500 960 300
2.5 7/0.67 2.01 0.8 1.8 28.0 7.41 3,500 1,310 300
4 7/0.85 2.55 1.0 1.9 35.0 4.61 3,500 2,060 300
