Annealed copper stranded wire for electrical purpose (WOAS)
Usage
- Electric conductor etc.
Applied specification
- KS C 3103, KS C IEC 60228
Structure

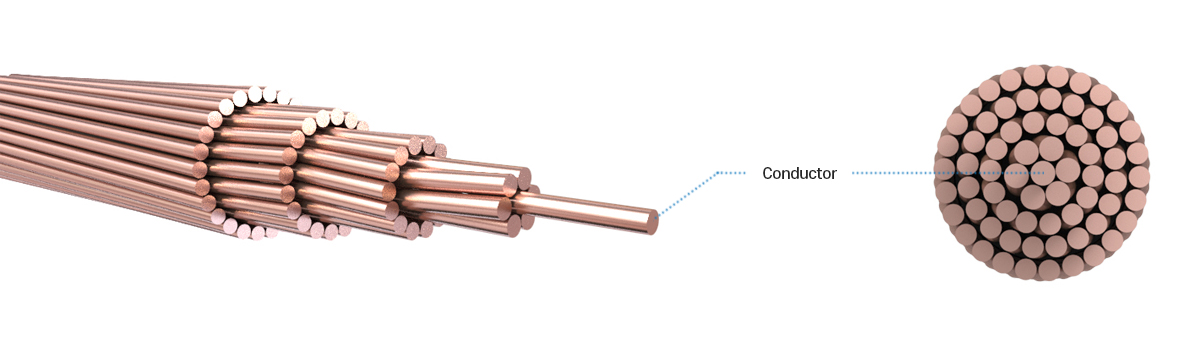

- Conductor : Annealed copper stranded wire
| Nominal Sectional Area |
No. & Dia. of Wire |
Calculated Section Area |
Overall Diameter |
Weight | Max. Conductor Resistance at 20℃ |
Length | Weight |
|---|---|---|---|---|---|---|---|
| ㎟ | No./㎜ | ㎟ | ㎜ | ㎏/㎞ | Ω/㎞ | m/reel | ㎏/reel |
| 1,000 | 127/3.2 | 1,021 | 41.6 | 9,315 | 0.0173 | 300 | 2,795 |
| 850 | 127/2.9 | 838.8 | 37.7 | 7,651 | 0.0211 | 300 | 2,295 |
| 725 | 91/3.2 | 731.8 | 35.2 | 6,655 | 0.0241 | 300 | 1,997 |
| 600 | 91/2.9 | 601.1 | 31.9 | 5,166 | 0.0293 | 300 | 1,550 |
| 500 | 61/3.2 | 490.6 | 28.8 | 4,448 | 0.0359 | 300 | 1,334 |
| 400 | 61/2.9 | 402.9 | 26.1 | 3,654 | 0.0454 | 300 | 1,096 |
| 325 | 61/2.6 | 323.8 | 23.4 | 2,937 | 0.0543 | 300 | 881 |
| 250 | 61/2.3 | 253.5 | 20.7 | 2,298 | 0.0694 | 300 | 689 |
| 200 | 37/2.6 | 196.4 | 18.2 | 1,776 | 0.0893 | 500 | 888 |
| 150 | 37/2.3 | 153.7 | 16.1 | 1,390 | 0.114 | 600 | 834 |
| 125 | 19/2.9 | 125.5 | 14.5 | 1,129 | 0.139 | 600 | 677 |
| 100 | 19/2.6 | 100.9 | 13.0 | 907.6 | 0.173 | 600 | 545 |
| 80 | 19/2.3 | 78.95 | 11.5 | 710.3 | 0.221 | 1,000 | 710 |
| 60 | 19/2.0 | 59.70 | 10.0 | 537.0 | 0.292 | 1,000 | 537 |
| 50 | 19/1.8 | 48.36 | 9.0 | 435.1 | 0.361 | 1,000 | 435 |
| 38 | 7/2.6 | 37.16 | 7.8 | 334.4 | 0.470 | 300 | 100 |
| 30 | 7/2.3 | 29.09 | 6.9 | 261.7 | 0.600 | 300 | 79 |
| 22 | 7/2.0 | 21.99 | 6.0 | 197.9 | 0.793 | 300 | 59 |
| 14 | 7/1.6 | 14.08 | 4.8 | 126.7 | 1.24 | 500 | 63 |
| 8 | 7/1.2 | 7.917 | 3.6 | 71.19 | 2.20 | 500 | 36 |
| 5.5 | 7/1.0 | 5.498 | 3.0 | 49.46 | 3.17 | 500 | 25 |
| 3.5 | 7/0.8 | 3.519 | 2.4 | 31.66 | 4.96 | 500 | 16 |
| 2.0 | 7/0.6 | 1.979 | 1.8 | 17.80 | 8.82 | 500 | 9 |
| 1.4 | 7/0.5 | 1.357 | 1.5 | 12.37 | 12.7 | 500 | 6 |
| 1.25 | 7/0.45 | 1.113 | 1.35 | 10.02 | 15.8 | 500 | 5 |
| 0.9 | 7/0.4 | 0.8799 | 1.2 | 7.913 | 20.0 | 500 | 4 |
Class 2 Annealed Copper Straraned Wire for Electrical Purpose
| Nominal Sectional Area |
도체의 최소 소선수 | Max. Conductor Resistance at 20℃ |
||
|---|---|---|---|---|
| Circular Stranded Conductor |
Circular Compacted Conductor |
Shape Conductor |
||
| ㎟ | Cu | Cu | Cu | Ω/㎞ |
| 0.5 | 7 | 36.0 | ||
| 0.75 | 7 | 24.5 | ||
| 1 | 7 | 18.1 | ||
| 1.5 | 7 | 6 | 12.1 | |
| 2.5 | 7 | 6 | 7.41 | |
| 4 | 7 | 6 | 4.61 | |
| 6 | 7 | 6 | 3.08 | |
| 10 | 7 | 6 | 1.83 | |
| 16 | 7 | 6 | 1.15 | |
| 25 | 7 | 6 | 6 | 0.727 |
| 35 | 7 | 6 | 6 | 0.524 |
| 50 | 19 | 6 | 6 | 0.387 |
| 70 | 19 | 12 | 12 | 0.268 |
| 95 | 19 | 15 | 15 | 0.193 |
| 120 | 37 | 18 | 18 | 0.153 |
| Nominal Sectional Area |
도체의 최소 소선수 | Max. Conductor Resistance at 20℃ |
||
|---|---|---|---|---|
| Circular Stranded Conductor |
Circular Compacted Conductor |
Shape Conductor |
||
| ㎟ | Cu | Cu | Cu | Ω/㎞ |
| 150 | 37 | 18 | 18 | 0.124 |
| 185 | 37 | 30 | 30 | 0.0991 |
| 240 | 61 | 34 | 34 | 0.0754 |
| 300 | 61 | 34 | 34 | 0.0601 |
| 400 | 61 | 53 | 53 | 0.0470 |
| 500 | 61 | 53 | 53 | 0.0366 |
| 630 | 91 | 53 | 53 | 0.0283 |
| 800 | 91 | 53 | - | 0.0221 |
| 1000 | 91 | 53 | - | 0.0176 |
| 1200 | (²) | (²) | - | 000151 |
| (1400)(³) | (²) | (²) | - | 0.0129 |
| 1600 | (²) | (²) | - | 0.0113 |
| (1800)(³) | (²) | (²) | - | 0.0101 |
| 2000 | (²) | (²) | - | 0.0090 |
주) (²) 최소 소선수는 규정하지 않는다. (³) ( )안의 치수는 권장하지 않는다.
